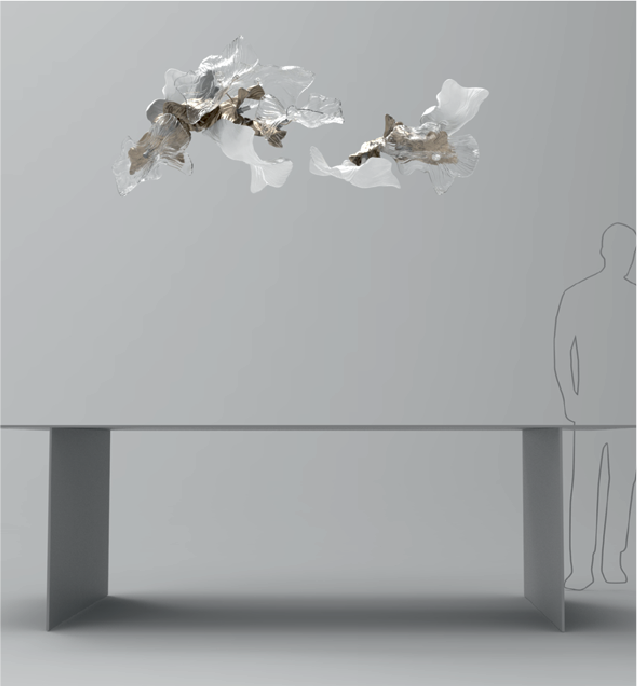

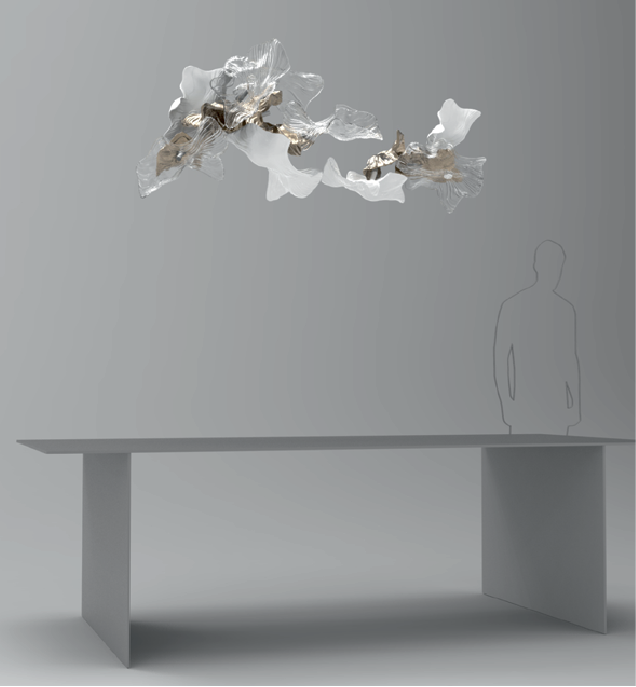

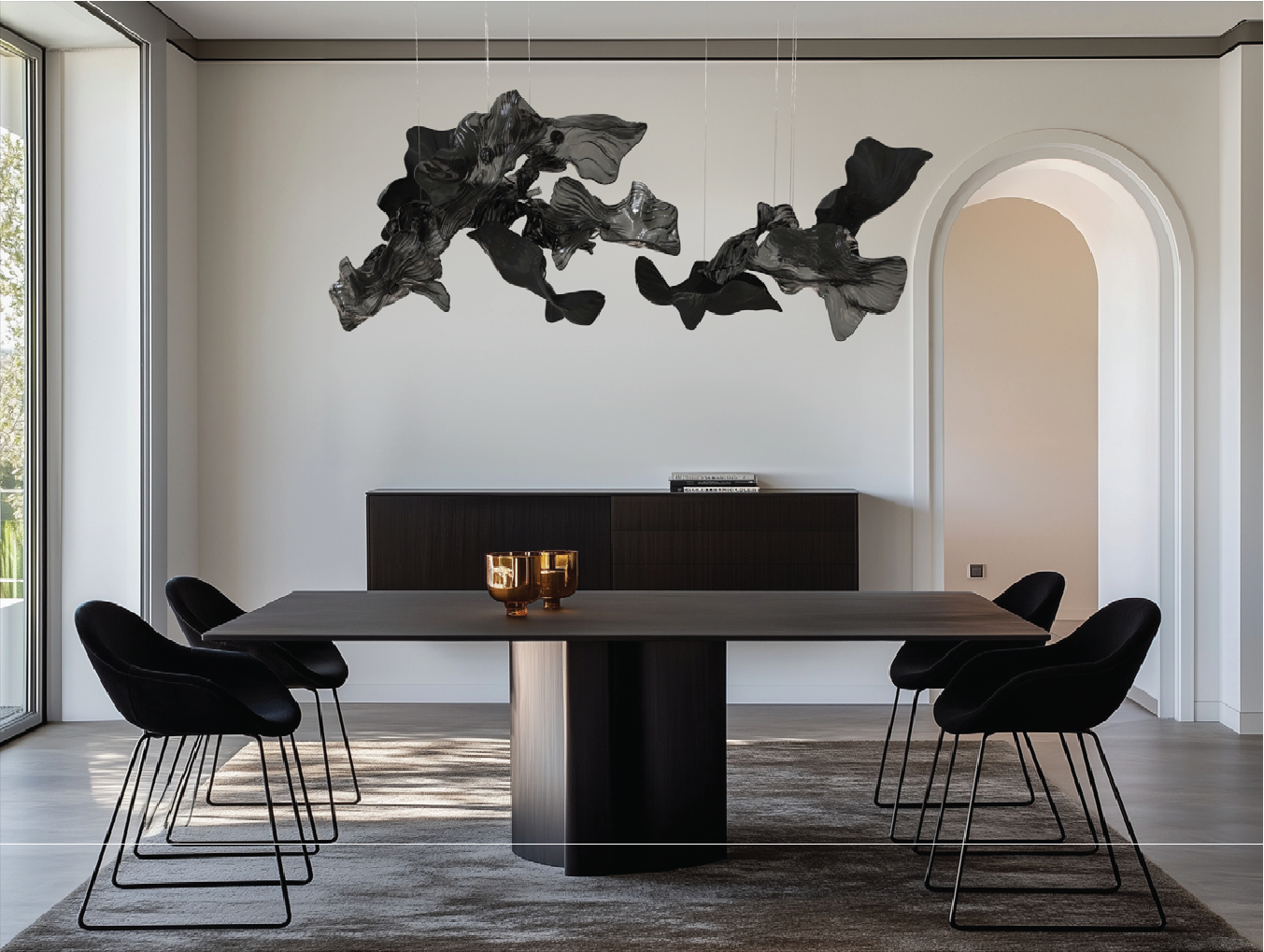

Configuration 2

View drawings Technical specs View modules used
Overall dimensions
63"W 24"D 28"H
Adjustable height
Min: 22" to Max: 99"
Configuration
2 modules
Configuration 2
1
Composition

Modules used

Individual Serip modules included in this configuration.

Documentation

Drawings

Review the overall dimensions and principal views for this configuration.

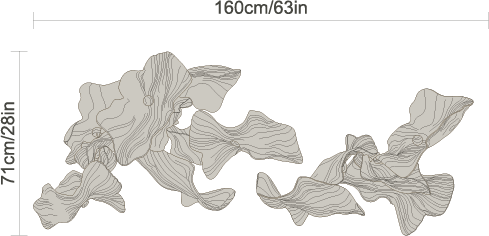

Front view

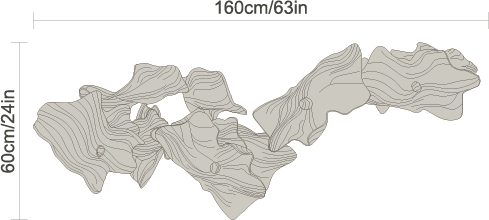

Top view
1 2
Specifications

Technical information

Overall dimensions and performance details for this configuration.

Dimensions & weight

Width
63 in
Depth
24 in
Height
28 in
Weight
300 lb

Technical information

Lumens
1345
Power consumption
444.0
Dimming options
0-10V
Canopy information
Each module with one canopy

Documentation

Tear sheet View or download PDF Installation instructions View or download PDF DWG drawing Download CAD file DWG STEP file Download 3D CAD file STEP 3D model Download model 3D
Materiality

Materials and finishes

Each configuration is available in a considered selection of hand-finished metals, sculptural glass, and porcelain elements. Natural variations are part of the character of each piece.

Available metal finishes

11 options
Metal finish

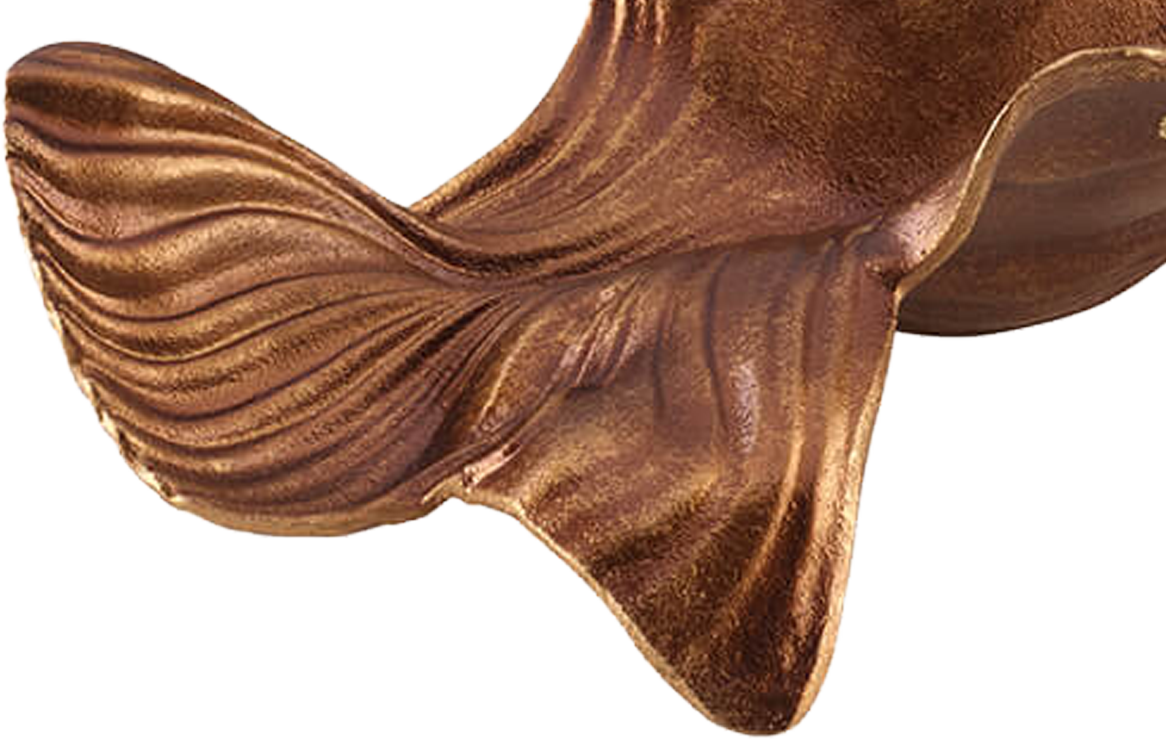

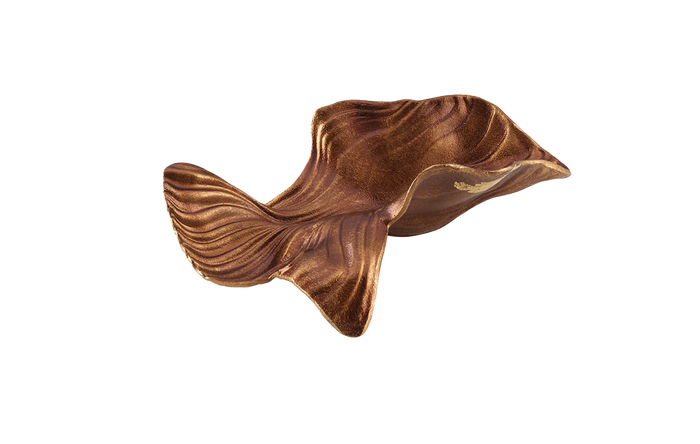

Talha

Varnished finished with randomly applied gold leaf
Metal finish

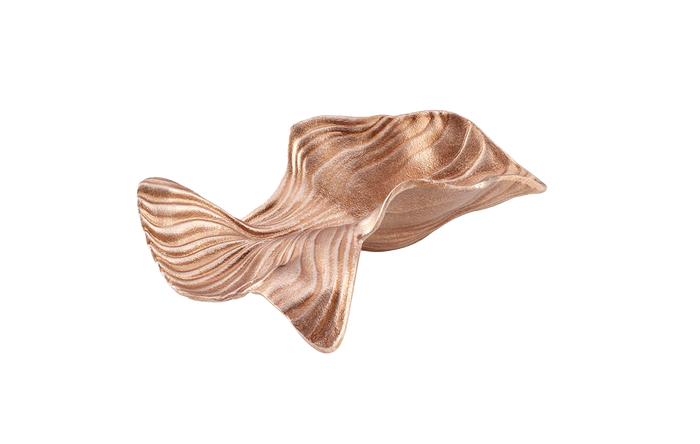

Rose Gold

Metal finish

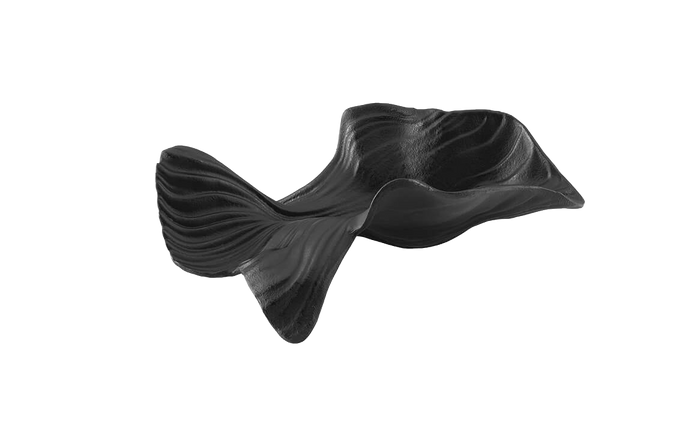

Black

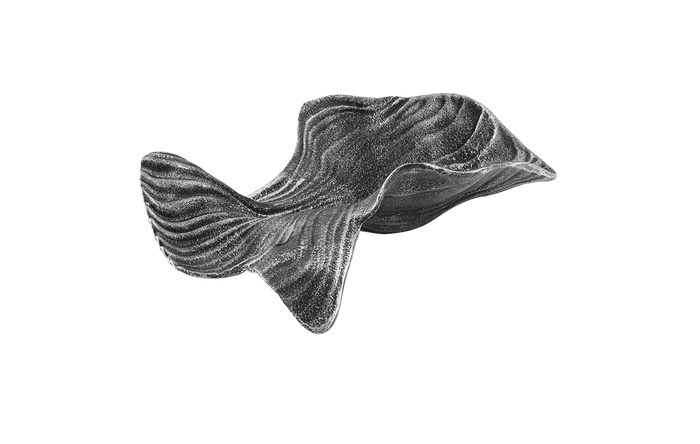

Metal finish

PALLADIUM

Metal finish

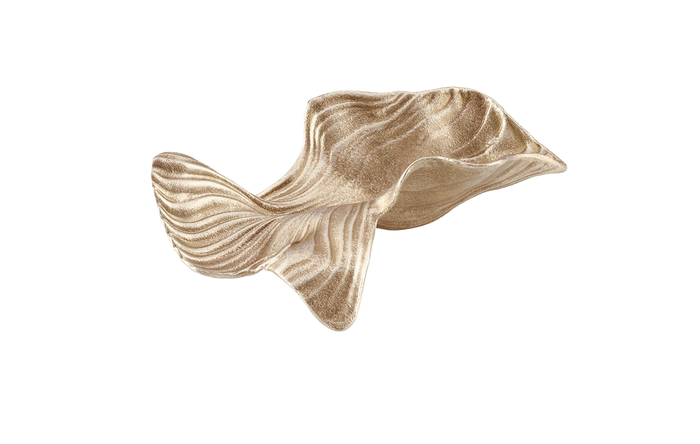

ANTIQUE SILVER

Metal finish

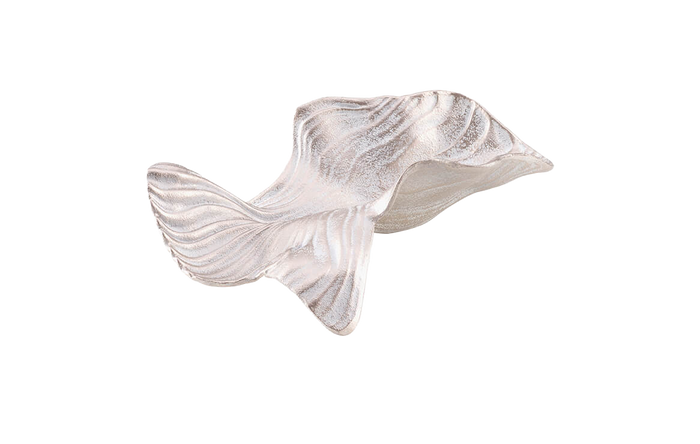

BRIGHT SILVER

Metal finish

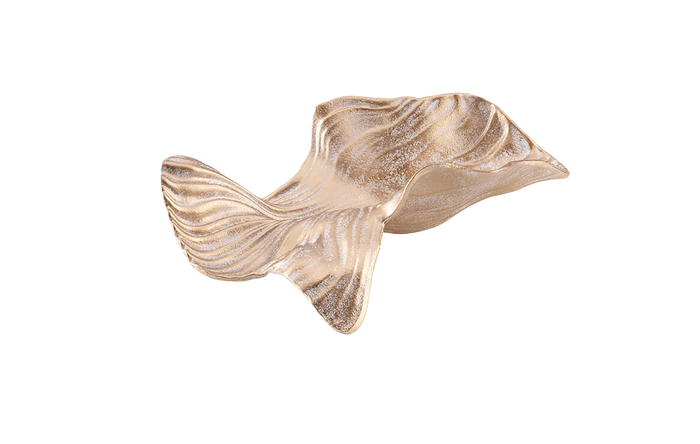

BRIGHT GOLD

Metal finish

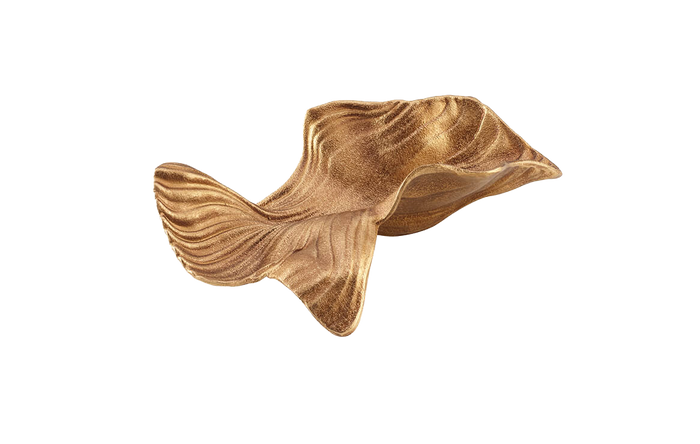

ANTIQUE GOLD

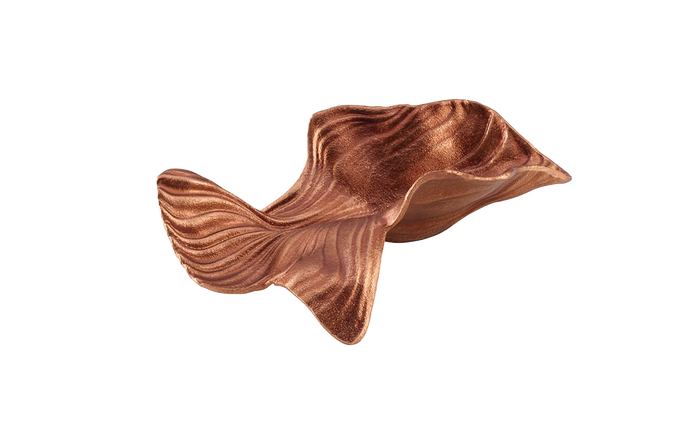

Metal finish

COPPER

Metal finish

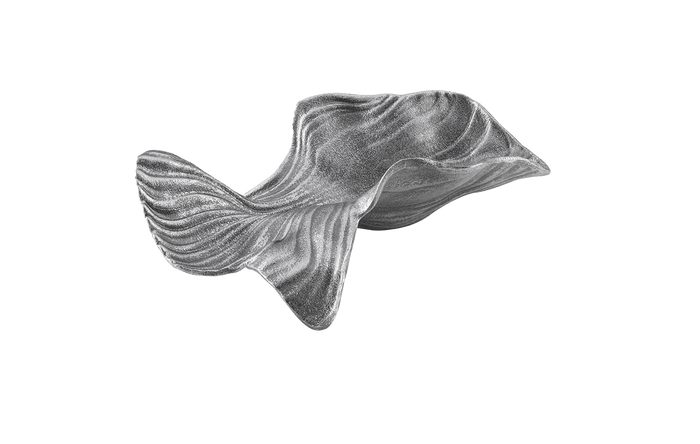

LEAD

Metal finish

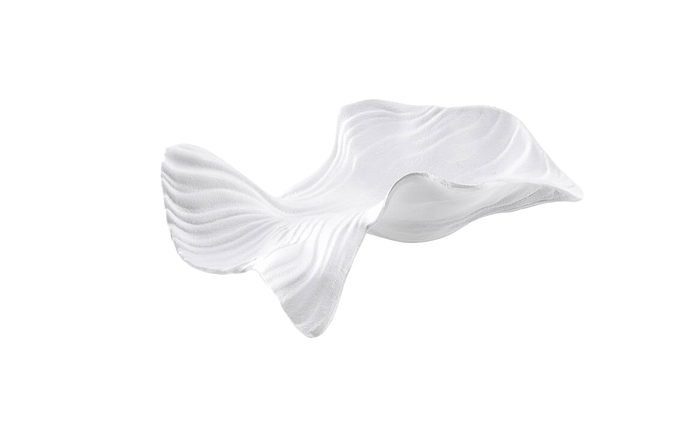

White

Glass options

4 options
Glass option

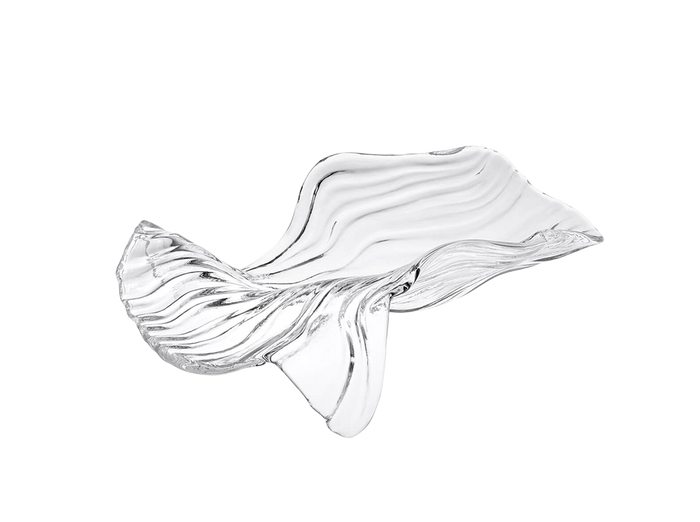

Clear

Glass option

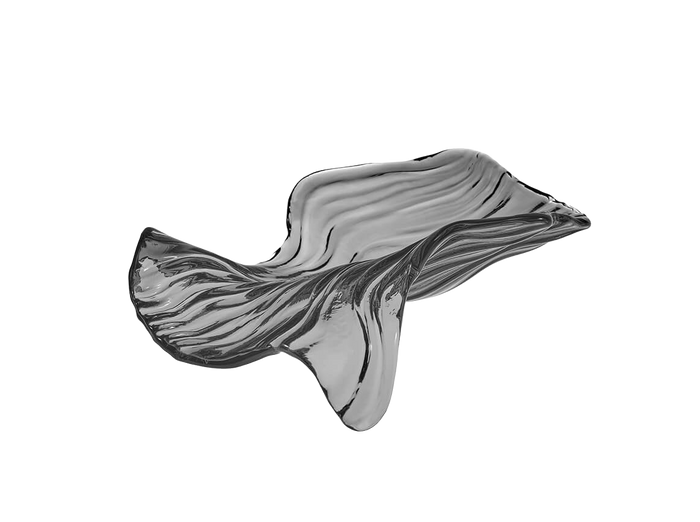

Grey

Glass option

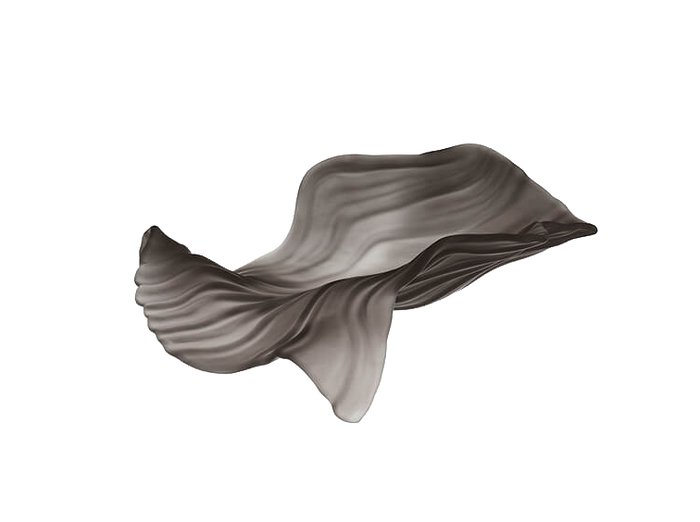

Satin Grey

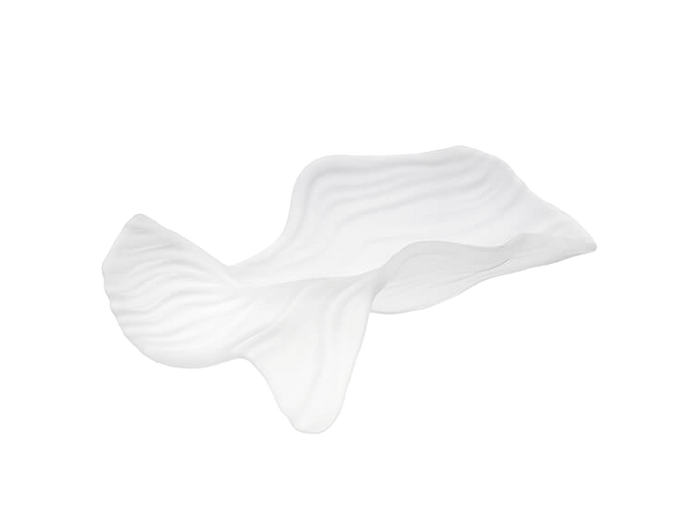

Glass option

Frosted

Porcelain options

1 option

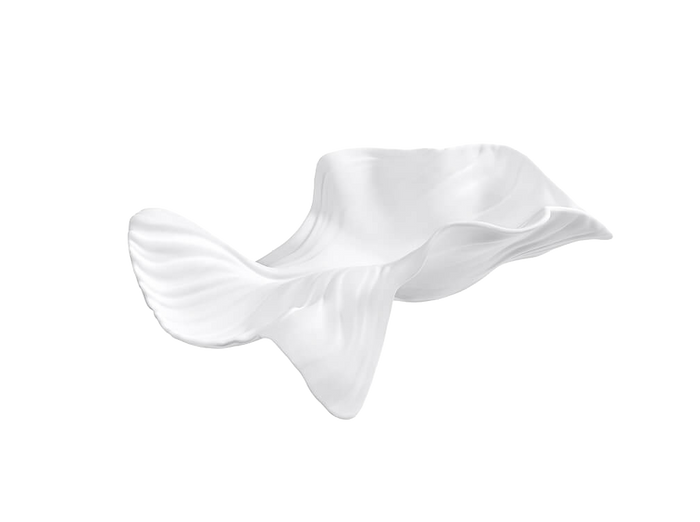

Porcelain option

White
