Quartzo zenith composition

View drawings Technical specs View tearsheet View modules used
Overall dimensions
122.0"H
Orientation
Vertical/Staircase
Configuration
19 modules
Quartzo Composition
1
Quartzo Composition
Specifications

Dimensions

Overall dimensions
Ø61.0" × 122.0" H
Weight
135 lb

Technical information

Light Source
19 x Integrated LED 1.5W
Lumens
4180
Wattage
32
Color Temperature
3000
Dimming
1-10V
Materials & finishes
Composition

Modules used

19 modules

Individual Serip modules included in this composition.

Documentation

Drawings

Overall dimensions and principal views for this composition.

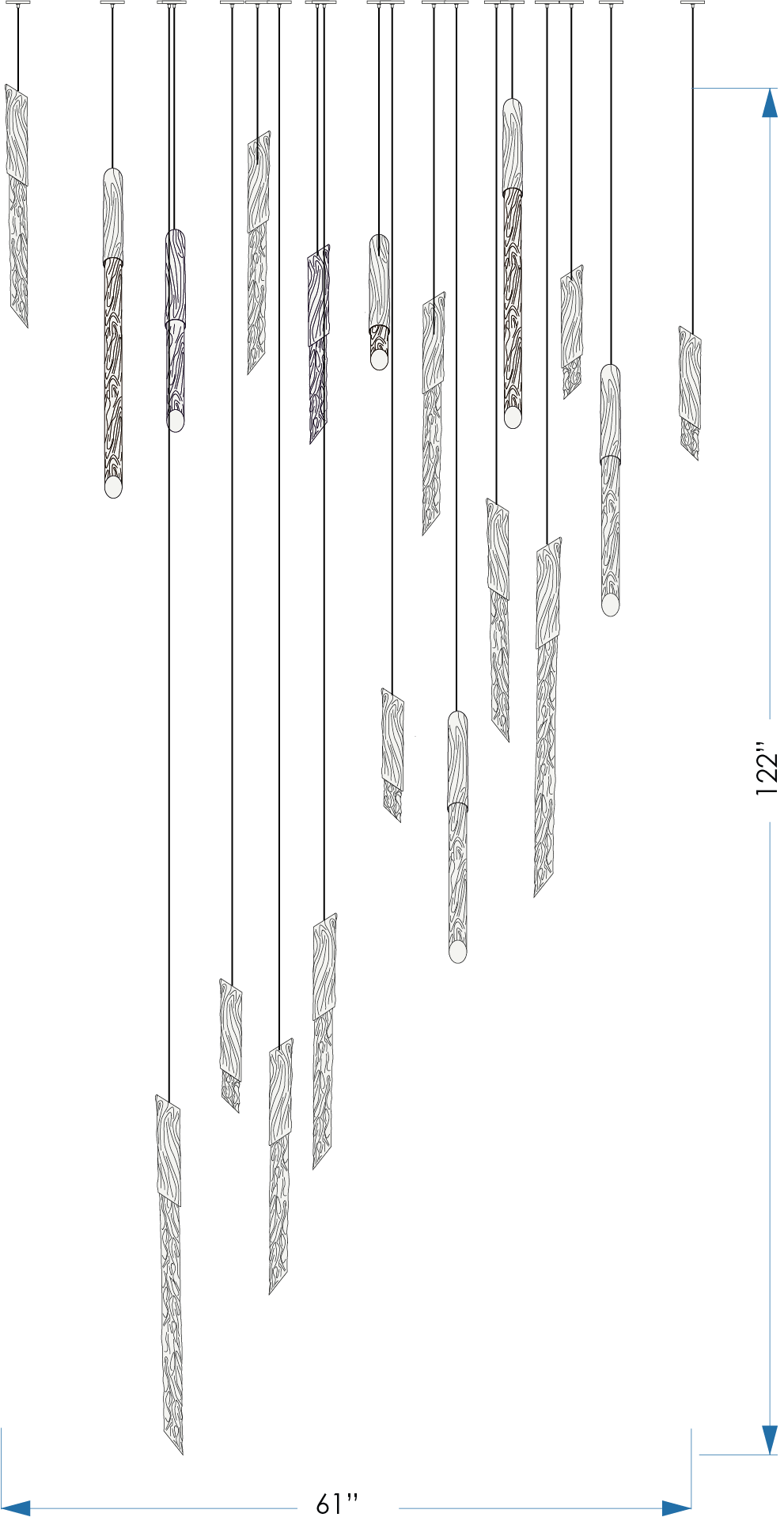

Technical drawing

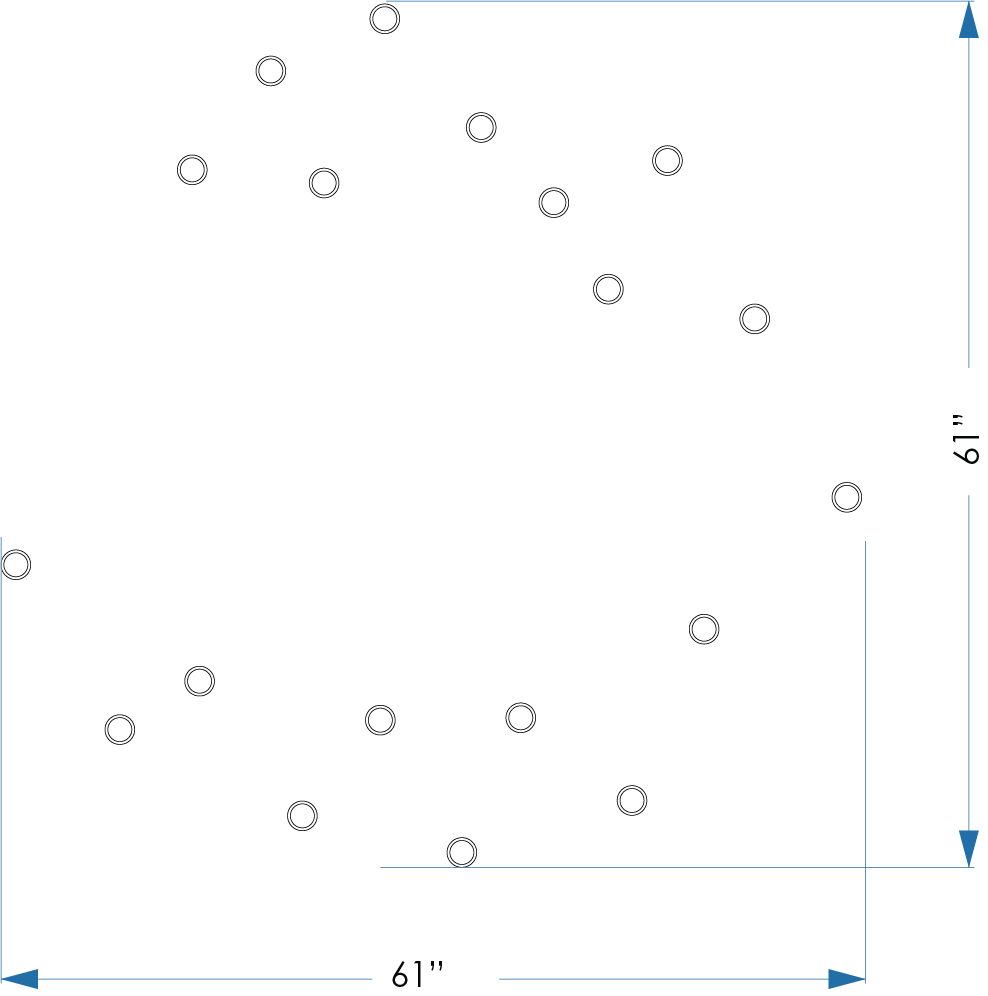

Top view
Technical drawing
Technical drawing
1 2
Specifications

Technical information

Overall dimensions and performance details for this composition.

Dimensions & weight

Height
122.0"
Diameter
61.0"
Weight
135 lb

Technical information

Lumens
4180
Power consumption
32 W
Dimming options
1-10V
Materiality

Materials and finishes

Each composition is available in a considered selection of hand-finished metals, sculptural glass, and porcelain elements.

Available metal finishes

10 options
Metal Finish

PR - Black

Metal Finish

PL - Palladium

Metal Finish

CH - Lead

Metal Finish

TA - Talha

Metal Finish

FP/PB - Bright Silver

Metal Finish

FP - Antique Silver

Metal Finish

CO - Copper

Metal Finish

RO - Rose Gold

Metal Finish

FO/PB - Bright Gold

Metal Finish

FO - Antique Gold

Glass options

1 option
Glass

Clear
